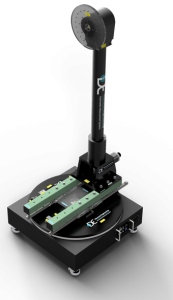

D6050 Series
The D6050 Series is a highly versatile multi-axis antenna measurement system suited for devices up to 25 pounds (11.5 kg). The non-metallic, belt-driven head provides a low-reflection environment ideal for electrically small or omni-directional antennas.
What’s Included?
The standard D6050 package features a 2-axis positioner, our powerful DAMS Antenna Measurement Studio, precision RF cables and rotary joints, all tools and documentation, plus DUT mounting hardware. Everything is backed by 3-year warranty.
Educational discounts are available for students, teachers or staff of universities or technical schools.
Key Features & Functions
- 2D & 3D Spherical Measurements (AZ over EL, EL over AZ, XYZ planes and more)
- Far Field Parameters (gain, beamwidth, efficiency, directivity, polarization, isolation, and more)
- OTA Measurements (TRP/TIS)
- Phase Center Measurements
- Spherical Near Field (optional)
Highlights
- Dual rotary joints
- Multiple configuration options
- Indexable mast offset up to 23” from center
- Non-metallic DUT mounting axis
- Ultra-high precision (up to 0.02º)
- Ideal for most antennas up to 25 pounds
What's Included?
The standard D6050 package features:
- 2-axis positioner
- DAMS Antenna Measurement Studio
- Precision RF cables
- Precision dual rotary joints
- DUT mounting hardware
- Tools and documentation
- 3-year warranty
General
› Dimensions
| Footprint: | 24” x 24” (609 mm x 609 mm) |
| Total Height: | 61.475” (1561.4 mm) |
| Clearance Radius: | 35” (1320 mm) surrounding clearance required for full 360º rotation |
| Total Weight: | 99 lbs (44.9 kg) |
Positioner
› Turntable
| Frequency Ranges (GHz): | Coax: DC to 6, 18, 40, 50, or 67 GHz |
| mmW: 50-75 (V-Band), 60-90 (E-Band) or 75-110 (W-Band) GHz | |
| Resolution: | 0.02º |
| Drivetrain: | Precision worm gear table with 1.8º stepper motor |
| Gear Ratio: | 90:1 |
| Movement Range: | 0-360º or ± 180º (re-indexable hardware limits) |
| Slip Ring: | 12-channel slip ring (standard, other options available) |
| Position Feedback: | Optional encoder (default open loop, position tracked by software) |
| Weight (positioner only): | 76 lbs (34.5 kg) with slide rails |
| Positioner Max Speed: | 4 RPM (24º per second) |
| AUT Mounting Options: ¹ | 24” (610 mm) diameter acrylic plate, 0.750” thick, 1/4”-20 hole array |
| (M6 hole array available upon request) | |
| Through-bore Diameter: | Standard: 1.4” (35.5 mm) |
| mmW: 3.25” (82.5 mm) | |
| Weight Capacity: | Centered: 150 lbs (45.5 kg); distributed: 250 lbs (113.6 kg) |
| RF Rotary Joint: | Precision (SMA, 2.92 mm, 2.4 mm, 1.85 mm or waveguide) |
› Roll / Phi Axis
| Frequency Ranges: | Coax: DC to 6, 18, 40, 50, or 67 GHz |
| mmW: 50-75 (V-Band), 60-90 (E-Band) or 75-110 (W-Band) GHz | |
| Resolution: | 0.05º |
| Drivetrain: | Belt driven with 1.8º stepper motor |
| Gear Ratio: | 36:1 with precision planetary reducer |
| Movement Range: | 360º continuous or ± 180º |
| Positioner Max Speed: | 4 RPM (24º per second) |
| Position Feedback: | Optional encoder (default open loop, position tracked by software) |
| Weight (mast only): | 22 lbs (10 kg) |
| AUT Mounting Options: ¹ | 4.5” (115 mm) diameter PVC mounting plate with 10-32 hole array |
| (Larger plate and/or M5 hole array available upon request) | |
| Through-bore Diameter: | 1.75” (44.5 mm) |
| Weight Capacity: | 25 lbs (11.4 kg) |
| Axial Moment Capacity: | 20 ft-lbs (27 Nm, 2.75 m-kg) |
| Lateral Moment Capacity: | 10 ft-lbs (13.5 Nm, 1.35 m-kg) |
| RF Rotary Joint: | Precision (SMA, 2.92 mm, 2.4 mm, 1.85 mm or waveguide) |
¹ = Custom mounting solutions available upon request
› Z-Axis
| Movement travel: | Up to 11” (279.5 mm) |
| Drive Type: | Precision ground C7 steel ball-screw |
| Motor: | NEMA 17 stepper motor (with manual control knob) |
| Max speed: | 4 in/s (100 mm/s) |
| Movement resolution: | 0.008” (0.2 mm) |
| Minimum travel: | 0.008” (0.2 mm) |
| Position feedback: | None (default open loop, position tracked by software) |
Electrical & Communications
| Controller type: | Internal 3-axis microprocessor-based controller |
| Resolution: | Up to 1/32nd microstepping |
| Motor current: | 3.125A per motor phase |
| Cooling: | 24V fan |
| Communication interface: | 9-pin D-Sub RS-232 (USB-to-Serial adapter included) |
| Included cable length: | 10 feet (3 meters) |
| Input voltage: | 24VDC 5A - 2.5 mm DC barrel connector |
| Power supply: | 24VDC 5A, 110V / 220V input (included) |
Standard Models
Unless otherwise specified, all standard model packages include the positioner, software, all RF components, AUT mounting hardware, and tools and documentation.
| D6050-00 | No RF Components |
| D6050-06 | 6 GHz SMA RF Components |
| D6050-18 | 18 GHz SMA RF Components |
| D6050-40 | 40 GHz 2.92 mm RF Components |
| D6050-50 | 50 GHz 2.4 mm RF Components |
| D6050-67 | 67 GHz 1.85 mm RF Components |
| D6050-75 | 50 to 75 GHz mmW V-Band RF Components |
| D6050-90 | 60 to 90 GHz mmW E-Band RF Components |
| D6050-110 | 75 to 110 GHz mmW W-Band RF Components |
| D6050-MMW-CFX | No RF components; configured with mounts for Copper Mountain FX series mmW adapters (up to 110 GHz) |
Options
| OPT-SR | 12-channel slip ring (for unlimited 360º rotations) |
| OPT-WGDH | Worm-gear driven head |
| OPT-AZ | Automated linear Z-axis |
| OPT-AZXY | Automated linear Z- and X-axis with pseudo Y-axis |
| OPT-ENC | Encoder feedback capability |
| DPA-PDK | DAMS Platform Development Kit |
| OPT-SMA | Software maintenance agreement |
Accessories
| DEPC-D | Pre-configured PC (desktop) |
| DEPC-L | Pre-configured PC (laptop) |
| DE-SIM | DAMS Antenna & Network Simulator software add-on |
| DPA-SW-N2F | Spherical nearfield processing |
| DPA-AUTOPOL | 18 GHz SPDT RF switch auto-polarizer with cables/adapters |
| DPA-AUTOPOL-40 | 40 GHz SPDT RF switch auto-polarizer with cables/adapters |
| DE-05xx | Broadband reference horn 500 MHz to 18, 26, 30 or 40 GHz |
| DE-07xx | Broadband reference horn 700 MHz to 18, 26, 30 or 40 GHz |
Part Drawings
D6050 24″ Turntable (SAE, standard)
D6050 24″ Turntable (metric, standard)
